Buy NowAdd to Wish List

Epic PWRgate

#58404-1673

$179.95 $154.95 Special Introductory Price

Click for Details
  • Epic PWRgate Unit
  • USB-micro Cable
  • (4) Retention Clips
  • Owner's Manual
  • Reference Card
The Epic PWRgate is West Mountain Radio's 3rd generation power gate product. It uses advanced technology to achieve a very low power loss and has maximum flexibility to charge modern batteries.
  • Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Low loss PWRgate provides forward voltage drop of only 0.05 volts.
  • USB port access to monitor system or to change charge parameters.
  • Program for specific battery types.
  • Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.
  • Optional direct solar panel input for battery charging (all chemistries). Solar panel VOC must be <= 30V.
  • Can be programmed for vehicle use to suspend charging when the alternator is off.
  • Complete LED status indicators.
  • Battery charge suspend button to eliminate current draw or charger noise for 30 minutes.
  • Optional temperature probe to control charging based on battery temperature.
  • Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole® connectors.

Note: Orders will take 4-5 days to process and ship.

Please click here for more information on Powerpole® Connectors.

Specifications

Maximum Voltage:PS 16V / Solar 30V
Maximum Current:40 Amperes
Voltage Drop:0.05VDC
Connectors:Anderson Powerpole®, 40A
Size:4.5 x 3.375 x 1.25 in
Weight:0.35 lbs
Mounting Holes:Four - 0.175 d, #8 hardware
Charging Circuit:
Jumper Lead Acid AGM LiFePO4
Charge Voltage 13.85 14.4 14.6
Charge Current 1, 5 or 10 amps 1, 5, 10 amps 1, 5, 10 amps
Stop Charge Current 0.5V 0.25V 0.25V
Trickle Charge 0.15V 0.15V 0V
Recharge Voltage 12.2V 12.2V 12.8V
Max Charge Time 25 hrs 25 hrs 25 hrs
Retry Time 4 hrs 4 hrs 4 hrs
Chemistry Lead Acid AGM LiFePO4
Min PS Volts 13.0V 13.0V 13.0V
Lowest Temp (F) 0 0 35
Highest Temp (F) 120 120 110
Use Temp for Charge Yes Yes No

*Note: The above parameters may also be changed via the USB interface.

Includes

  • Epic PWRgate Unit
  • USB-micro Cable
  • (4) Retention Clips
  • Owner's Manual
  • Reference Card
Epic PWRgate Diagram

Quality Declaration

Product designed, tested and used by ham radio operators onsite.

Power
Powerpole® Cables
Connectors and Crimp tools
PWRlock - RIGrunner Retainer Kit
58512-1060
$13.95Buy NowAdd to Wish List
PWRcrimp - Crimp Tool for Powerpole® Connectors
58568-1049
$39.95Buy NowAdd to Wish List
Powerpole® Connector 15A Pack - 12 Pair
58257-1093
$12.95Buy NowAdd to Wish List
 Powerpole® Connector 15A Bulk Pack - 100 Pair
58257-1094
$79.95Buy NowAdd to Wish List
 Powerpole® Connector 30A Pack - 12 Pair
58257-1095
$12.95Buy NowAdd to Wish List
 Powerpole® Connector 30A Bulk Pack - 100 Pair
58257-1096
$79.95Buy NowAdd to Wish List
 Powerpole® Connector 45A Pack - 12 Pair
58257-1099
$17.95Buy NowAdd to Wish List
 Powerpole® Connector 45A Bulk Pack - 100 Pair
58257-1100
$119.95Buy NowAdd to Wish List
 Powerpole® Retention Clips - 12 Pack
58257-1092
$7.95Buy NowAdd to Wish List
PWRcrimp Die Set - Insulated Terminals
58502-1050
$9.95Buy NowAdd to Wish List
PWRcrimp Die Set - Non-insulated Open Barrel Terminals
58502-1051
$9.95Buy NowAdd to Wish List
PWRcrimp Die Set - Non-insulated Terminals
58502-1052
$9.95Buy NowAdd to Wish List
PWRcrimp Die Set - RG58, RG59/62, BNC/TNC, Coax
58505-1053
$13.95Buy NowAdd to Wish List
PWRcrimp Die Set - RG59, RG6, F type, CATV
58505-1054
$13.95Buy NowAdd to Wish List
PWRcrimp Die Set - RJ45 8P Modular
58507-1055
$13.95Buy NowAdd to Wish List
PWRcrimp Die Set Package (all except replacement)
58568-1056
$54.95Buy NowAdd to Wish List
PWRcrimp Die Set - Replacement (Powerpole® 15-30-45A)
58568-1057
$13.95Buy NowAdd to Wish List
Fuses
Fuse Assortment Low Value
58537-1085
$4.95Buy NowAdd to Wish List
Fuse Assortment High Value
58537-1086
$4.59Buy NowAdd to Wish List
Buss 10A ATC Circuit Breaker
58537-1087
$5.95Buy NowAdd to Wish List
Buss 15A ATC Circuit Breaker
58537-1088
$5.95Buy NowAdd to Wish List
Buss 20A ATC Circuit Breaker
58537-1089
$5.95Buy NowAdd to Wish List
Buss 25A ATC Circuit Breaker
58537-1090
$5.95Buy NowAdd to Wish List
Buss 30A ATC Circuit Breaker
58537-1091
$5.95Buy NowAdd to Wish List
PS/Battery/Supplies
Sealed Lead Acid 111.0 Amp Hour AGM Battery (20 Hr Rate)
58510-1429
$274.95Buy NowAdd to Wish List
Gel 73 Amp Hour Deep-Cycle Battery (20 Hr Rate)
58510-1059
$234.95Buy NowAdd to Wish List
Sealed Lead Acid 79 Amp Hour AGM Battery (20 Hr Rate)
58510-1058
$199.95Buy NowAdd to Wish List
Automatic Power Off Switch
58561-1109
$64.95Out of StockAdd to Wish List

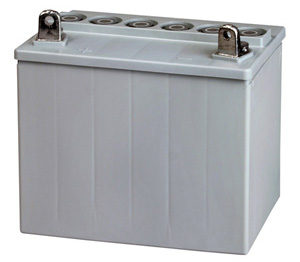

Gel 31.6 AH Battery (20 Hr Rate)
