RIGblaster Jumper Diagrams (Nomic)

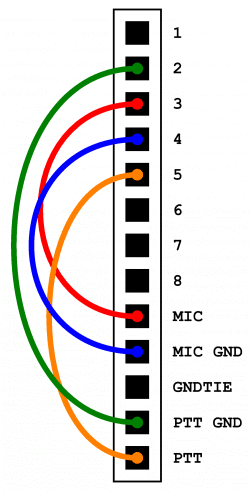

Alinco RJ-45 Modular



Drake TR7 4 Pin Round



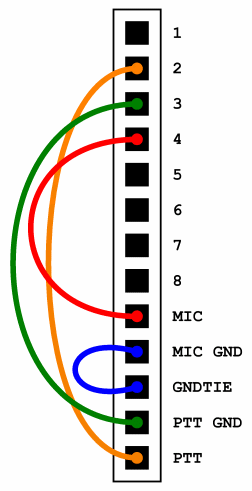

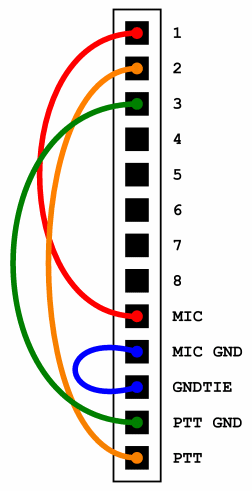

Drake TR7 With SP75 4 Pin Round



Elecraft KX3



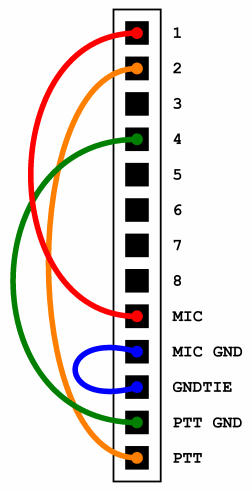

Icom 4 Pin Round



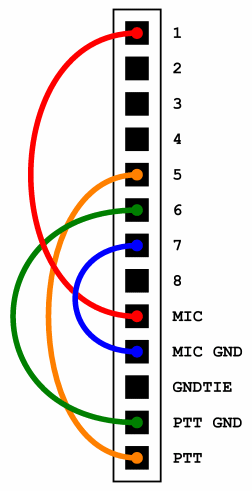

Icom 8 Pin Round



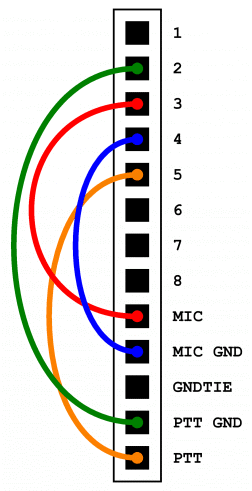

Icom RJ-45 Modular



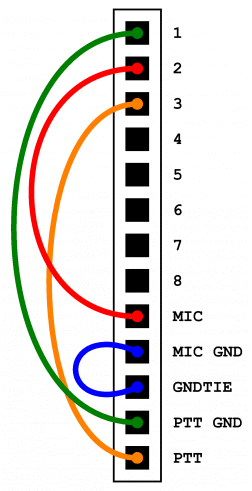

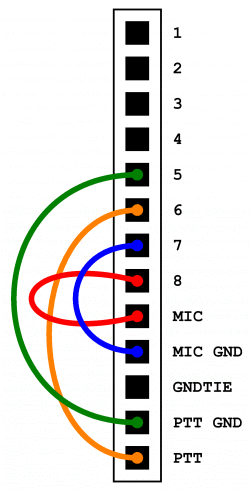

JRC JST245 8 Pin Round



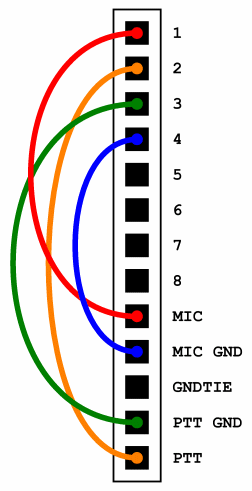

Kachina 8 Pin Round



Kenwood 4 Pin Round



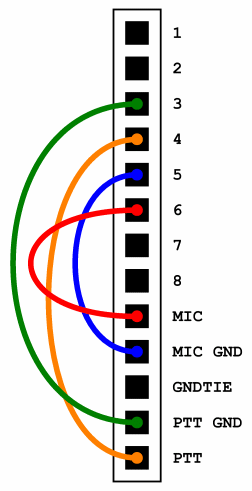

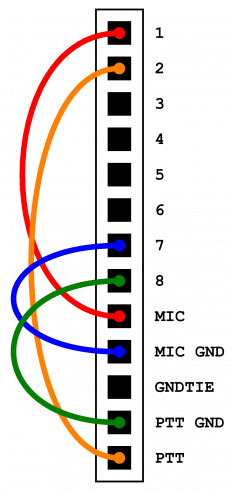

Kenwood 8 Pin Round



Kenwood RJ-45 Modular

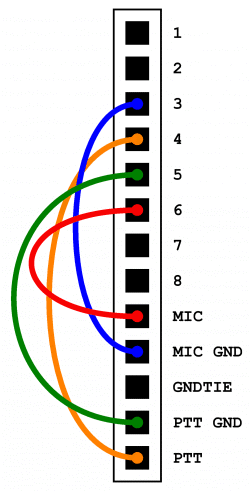

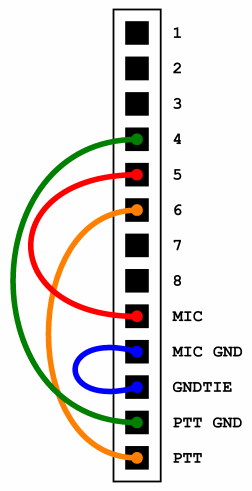

Kenwood TS-480 RJ-45 Modular (Early)



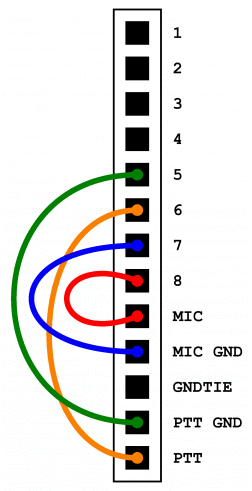

Motorola RJ-45 Modular



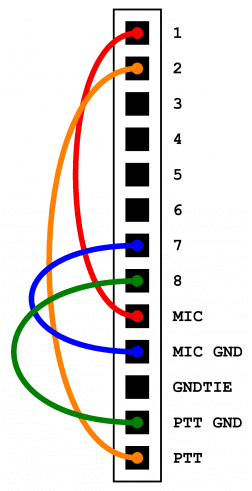

Patcomm PC-1600A



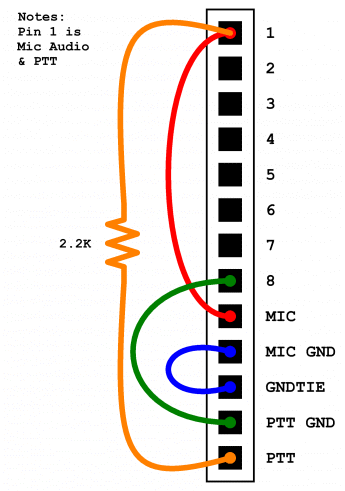

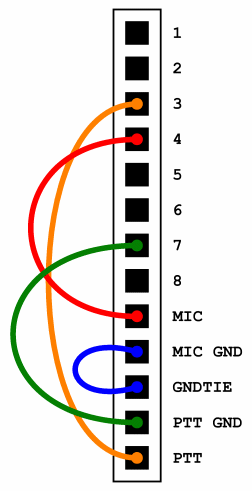

Radio Shack HTX-100 8 Pin Round



Radio Shack HTX-252 8 Pin Round



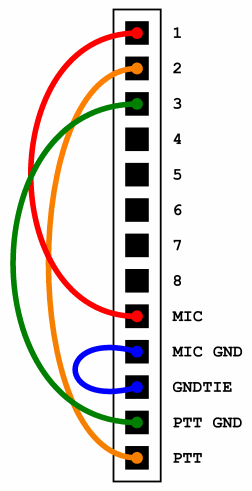

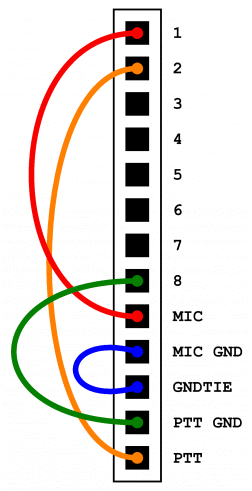

Radio Shack RJ-45 Modular



Standard C5608DA



Ten Tec 4 Pin Round



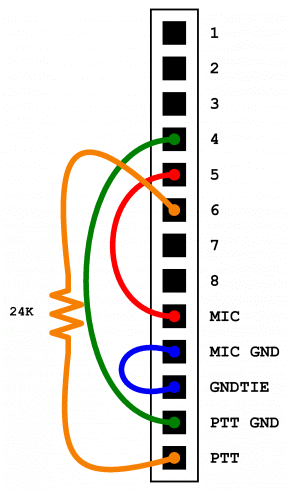

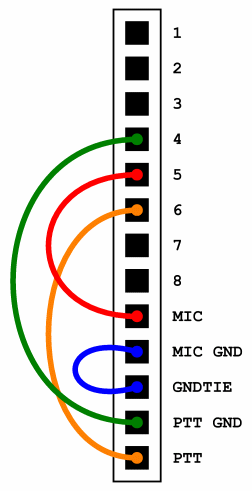

TYT TH-9000



Yaesu 4 Pin Round



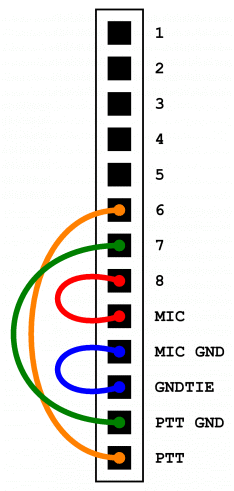

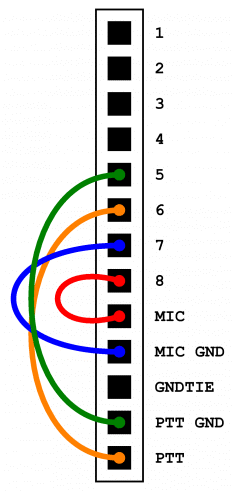

Yaesu 6 Pin Modular Type 1 (FT-100)



Yaesu 6 Pin Modular Type 2 (VHF)



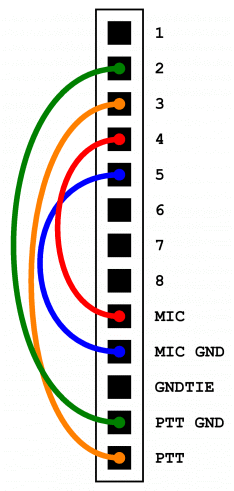

Yaesu 8 Pin Round (Common Ground)



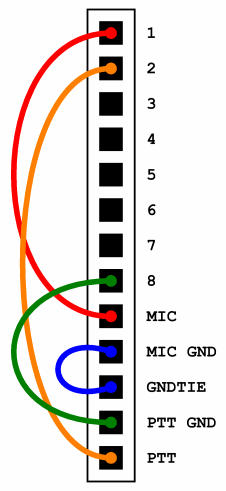

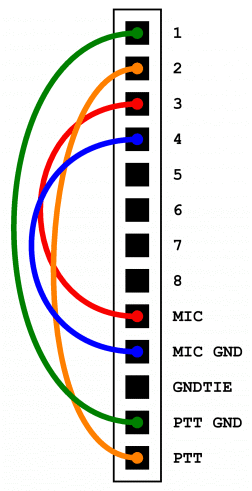

Yaesu 8 Pin Round (Isolated)



Yaesu RJ-45 Modular



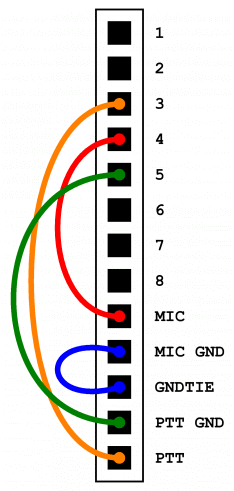

Yaesu RJ-45 Modular (FT-2500M)
