RIGrunner 4005i with WiFi
#58312-1354
$329.95
- RIGrunner 4005i with WiFi capability
- WiFi External Antenna
RIGrunner 4005i - 24V Positive
#58312-1441
$284.95
- (6) Retention Clips
- RJ45 Ethernet Cable
- Owner's Manual
Features
The RIGrunner 4005i enables amateur radio, emergency communications systems and repeater site operators to monitor and control their DC power distribution systems from any internet-ready mobile device or PC.
- Provides internet based monitoring and control of 12VDC power distribution
- Delivers up to 40 amps total through 5 outlets while transmitting, 40 amps continuous duty
- Each outlet features independent on/off control and user configurable current trip point, 100mA to 40A
- RJ45 Ethernet port standard, WiFi option available
- Integrated web server for monitoring and control
- Can be configured to issue alarm email when outlet trips off
- Front mounted LCD display and indicator LEDs for local monitoring of status, input voltage and current draw from each outlet
- Power connectors on unit are Anderson Powerpole® connectors and retention clips are included
Click here to see the standard RIGrunner 4005i or RIGrunner 10010i Rackmount.
Please click here for more information on Powerpole® Connectors.
Specifications
| Overall Dimensions (maximum, w/o cables): RIGrunner 4005i | 1.625" H x 8" W x 5.25" D |
| Overall Dimensions (maximum, w/o cables): RIGrunner 4005i with WiFi | 1.625" H x 9.5" W x 5.25" D |
| Weight: RIGrunner 4005i | 16 oz. |
| Weight: RIGrunner 4005i with WiFi | 16 oz. |
| Maximum total current | 40 amps |
| Maximum single individual outlet current | 40 amps (electronic fuse protected) |
| Input Voltage Range | min. 8.0V / max. 15.5V |
| Electronic Fuse Range | min. 0.01A / max. 40A |
| Environmental Temperature | -10 to 85 °C |
| Current: | |
| Max. Total Continuous | 40A |
| Max. Port Continuous | 40A |
| Max Port @ 1 minute | 40A |
| Operating w/Backlight | 80mA |
| Operating no Backlight | 70mA |
| Monitor: | |
| Voltage Accuracy | +/- 2.5% |
| Voltage Resolution | 0.01V |
| Current Accuracy | +/- 2.5% |
| Current Resolution | 0.01A |
| Minimum Current Reading | 50mA |
Quality Declaration
This product has been tested to comply with Part 15 of the FCC rules for a Class B computer peripheral and digital device for use in the home and office. This testing is done to ensure the product does not generate RF interference.
Product designed, tested and used by ham radio operators onsite.
Includes
All Models
- (6) Retention Clips
- RJ45 Ethernet Cable
- Owner's Manual
WiFi Model
- WiFi External Antenna

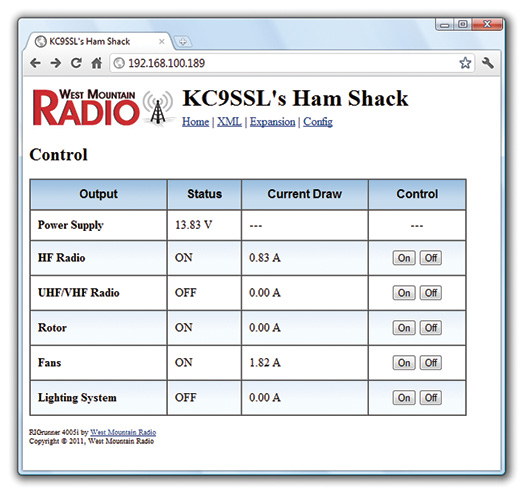

The integrated web server enables internet based monitoring and control of your DC power distribution system. It includes the following capabilities:
- Input voltage monitor
- Current draw monitoring through each outlet
- Individual outlet on/off control with trip indication
- Configuration of current limits for each outlet, 1 to 40 amps
- Generation of alarm email in case of current limit trip
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
| Powerpole® Connectors | |||
|---|---|---|---|
| 15A | 30A | 45A | |
| Amps (UL) Per Pole | 0 to 55 | 0 to 55 | 0 to 55 |
| Volts (UL) Per Pole | 600 | 600 | 600 |
| Amps Continuous | 15 | 30 | 45 |
| Wire Gauge (AWG) | 20 - 16 | 16 - 12 | 14 - 10 |
| Touchsafe Polarized Housing |
Yes Yes |
Yes Yes |
Yes Yes |
