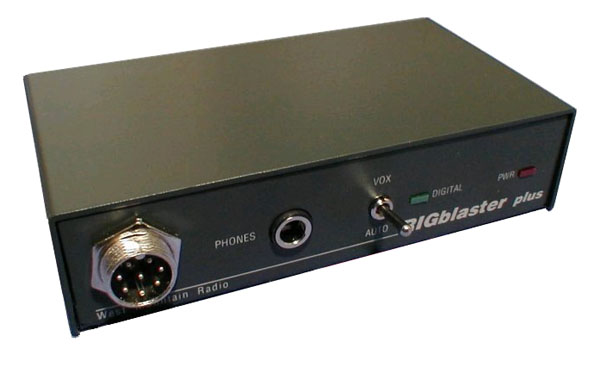

Welcome, it's   RIGblaster Plus Phone 203.853.8080 Fax 203.299.0232 Features of the RIGblaster Plus Works will over 2000 different radios as supplied. Works with any computer that has sound and USB or serial connections. Supplied with both a standard DB9 RS232 serial cable and USB cable interface (supported for Mac (OS9,10), Linux, Windows (98SE - Vista 32 and 64 bit)! May be used old or new computers with your choice of USB or RS232 DB9 serial. Complete with 8pin screw on and RJ45 radio mic. cable compatibility. (4pin round screw on mic connector adaptor kit available as an option). Fully automatic operation; your mic. always works, your computer always works, no manual switching, no plugging or unplugging. No extra manual switches needed, two DPDT relays for true automatic operation unlike other sound card interfaces. Simpler operation than the other brands, you never have to remember to push un-needed switches to make your station work. PTT override feature; your mic. can always override the computer, perfect for contesting or SSTV operation. PTT interrupt feature; your mic. can stop the computer program, our innovation. Automatic switching between your mic. and the computer; never a hot mic. You may always leave it connected, your computer and radio work exactly like they did before, no bypass switch required. In addition to the PTT keying circuit there is a fully isolated CW/FSK keying output for direct keying of your rig's CW or FSK jack for use with non-sound card software, no other interface has this. Input for control of the additional fully isolated CW/FSK keying circuit as well as the PTT circuit is jumper selectable between serial port control pins: RTS, DTR, and TXD. Internal diagnostic RTS, DTR and TXD LEDs show at a glance what the serial port is doing, check if other brands have this. Rear panel RCA PTT switch / foot switch jack that enables the PPT override and interrupt, another exclusive. Proven performance, over 30 Thousand on-the-air! Compatible with almost every radio and every sound card equipped computer. Works with EVERY present or future ham radio sound card program! Properly matched and RF suppressed audio for your radio. Fully isolated transmit audio and PTT keying, unlike other interfaces that have little or no isolation. Easier hookup thanks to our fully isolated audio and computer keying circuits. Far and away the easiest to use, most complete and up to date CD, included for free. Supplied with everything that you need to get on the air with sound card software. Effective RFI suppression to eliminate RF in the audio, proven in over 30,000 installations. Positive and fully automatic PTT control supported almost 100 ham programs, no illegal or spurious signals due to built in sound card VOX operation. Leaves your computer's sound functioning exactly as before unlike external sound chip interfaces. Supplied in sturdy 1/16" aluminum case, powder coat painted and silk screened. No plastic pill boxes, sharp edges or plastic coated metal. Double sided 1/16" fiberglass plated through, solder masked and silk screened printed circuit board. Stainless steel and black anodized stainless steel hardware. The only interface with available quick change mic. cables to easily switch to 6 pin Modular (Yaesu) or 4 pin screw on mic. connector radios. (RJ45 and 8 pin round cables included). Connectors for all wires with no wires sticking through holes to get frayed and break loose. Limited one year parts and labor guarantee, you pay only one way shipping. Step by step illustrated instruction manual on CD. Extensive online support. The best support, telephone and E-mail support 5 days a week 8 hours a day on any question you have, hardware or software. Power supply included, no charge. Your choice of 120 VAC or 230 VAC Station 12 VDC power powere instead of using the included power suppy is an option: see our support page. Top of Page Be sure to read our FAQs and Product Comparisons to help you choose which model to buy. HOW JUMPERS INSIDE RIGBLASTERS MAKE THEM UNIVERSALLY COMPATIBLE WITH ALMOST EVERY RADIO EVER MADE
