Power Analyzer and Whattmenter

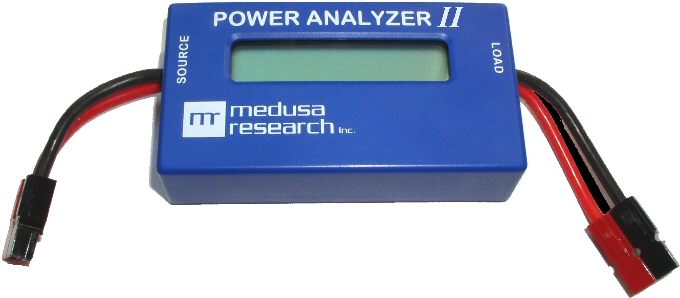

Medusa Research Power Analyzer II with Powerpoles
$
Medusa Research Power Meters from WMR with Powerpole® connectors installed.
Simultaneously reads Volts, Amps. Watts, Amp-hrs and Watt-hrs fully automatically.
Read Volts, Amps. Watts, Amp-hrs and Watt-hrs all at once with a fast in-line connection.
12 Bit A/D conversion for higher resolution than the other meters.
Each unit is individually computer calibrated to lab standards.
Power Analyzers are designed to make voltage, amperage and power measurement easy and fast.
Amp-Hrs and Watt-Hrs are displayed alternately every 3 seconds.
Optional USB adapter and software allows connection to a PC to graph over time.
Rugged and easy to use, just plug in the Powerpoles® between your power source and load.
Please Note; Current is measured on the negative lead.
|
Dimensions H,W,D
|
2.25" X 4.25" X .938"
|
|
Pigtail with Powerpoles®
|
2.5" min
|
|
Input Voltage
|
5 to 60 volts (0 V with ext. 6V supply)
|
|
Current
|
-30 to 100 Amps
|
|
Display Range: Voltage
|
60 Volts
|
|
Display Range: Current
|
-30 to 100 Amps
|
|
Display Range: Power
|
-1800 to 6000 Watts
|
|
Display Range: Amp-Hours
|
+-999.999 AH
|
|
Display RAnge: Watt-Hours
|
+-9999.9 WH
|
|
Display Resolution: Voltage
|
0.005 V
|
|
Display Resolution: Current
|
0.010 A
|
|
Display Resolution: Watts
|
1 W
|
|
Display Resolution: Amp-Hours
|
0.001 AH
|
|
Display Resolution: Watt-Hours
|
0.1 WH
|
|
Accuracy: Offset
|
+- 1 count
|
|
Accuracy: Voltage
|
+-0.1% of reading, +- 1count
|
|
Accuracy: Current
|
+-0.1% of reading, +- 1count
|
Power Analyzer POWERlink USB Adapter
$
A USB Computer interface accessory for the Power Analyzer II
Connects a Power Analyzer II to a computer USB connector.
PowerPlus II Software written specifically for the Power Analyzer II.
This software displays graphs and saves the measurements of the Power Analyzer over time.

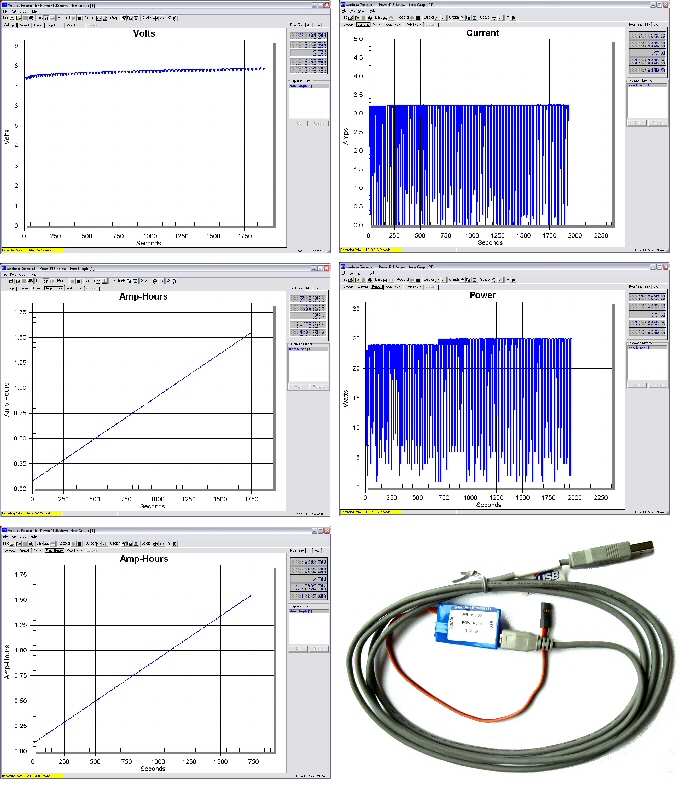

Software screen shots below. (example shows the charge to a LiPo battery using a pulse charger).

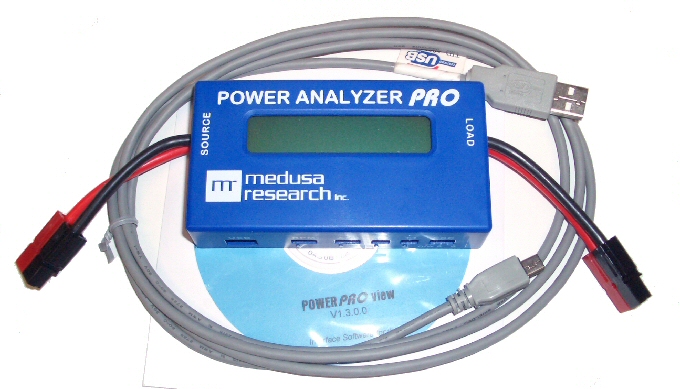

Medusa Research Power Analyzer PRO with Powerpoles
$
Comes with PowerViewPro software on CD ROM and USB interface cable.
The Power Analyzer Pro has the features of the MK II plus the following.
Two channel temperature measurement and recording using optional temperature probes.
RPM measurement and recording with optional RPM sensor.
Thrust measurement with optional Load Cell
The Power Analyzer Pro will help maximize your power system knowledge.
PowerViewPRO
Software
PowerView Pro Software written specifically for the Power Analyzer PRO supplied on CD ROM.
This software displays and graphs and saves the measurements of the Power Analyzer PRO over time.

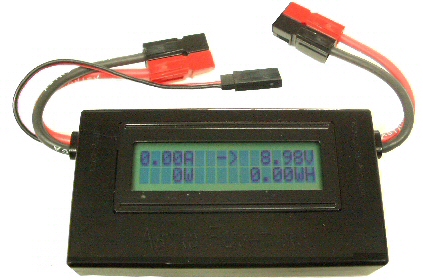

Super Whatt Meter with Powerpoles®
$
A favorite of electric powered aircraft & battlebot builders is now available for hams using Powerpoles®.
The Whatt Meter is designed to make voltage, amperage and power measurement easy and fast.
Simultaneously reads Volts, Amps, Watts and alternates between A-hrs and W-hrs, fully automatic.
These new meters take the guesswork out of power measurement.
Rugged and easy to use, just plug it in to any Powerpole® circuit.
Makes it easy to read power consumption and battery capacity.
Accurately reads up to 70 amps!
Bi directional current and power measurement with an arrow to indicate direction (charge or discharge)
A-hrs and W-hrs are totaled no matter which direction the current flows.
Now you can stop guessing and start making informed decisions.
Please Note; Current is measured on the negative lead.
Product Specifications
| Maximum Voltage | 60 volts |
| Minimum Voltage powered by test voltage | 4.5 volts |
| Minimum Voltage poweed by external 5 v battery | Zero Volts |
| Maximum Amps while discharging | 70 Amps |
| Maximum Amps while charging | 10 Amps |
| Maximum Power | 4,000 Watts |
| Current resolution | 10 Milliamps |
| Voltage resolution | 20 Millivolts |
| Power resolution | 0.1 Watts |
| Maximum amp hours | 96 Amp Hours |
| Amp Hour resolution | 0.01 Amp Hour |
| Maximum watt hours | 5000 W-hr |
| Current Consumption | 10 Milliamps |
| Connectors Supplied | Anderson Powerpoles |
|
| |
