CBA Charge Controller

#58254-1424

$134.95

Click for Details
  • CBA Charge Controller Unit
  • (2) 4 Position Input/Ouput Terminal Plugs
  • 2 pair Red and Black Powerpole® with 30A contacts
  • USB Cable (A-B)
  • Power Supply
  • Owner's Manual
View Details | Restock Alert. The estimated return to stock date is December 31, 2024.

Capabilities

  • The West Mountain Radio CBA Charge Controller can be used with a West Mountain Radio CBA Amp System, CBA V, CBA IV or CBA HR and a user provided battery charger to automate life cycle tests, automatically alternating between periods of charging the battery and discharging the battery. By automatically switching between charge and discharge cycles of the battery, a hands-free lifetime test of the battery can be performed.
  • When the unit is idle, the two pairs of Powerpole® are open. When the unit is in a charging state, the two Powerpole® are connected together, connecting the user provided battery charger to the battery.
  • CBA Charge Controller interface requires a user provided battery charger compatible with your battery. CBA Charge Controller interfaces to this external charger.
  • Can measure the current going from the charger into the battery, and this current is logged by the software.
  • Two general purpose inputs are available that can be used by the CBA Charge Controller and software to determine when a charge cycle is complete. These inputs could be connected to a charge complete LED on the user provided battery charger.
  • Two general purpose outputs are available that can be used to send start charging or stop charging messages to the user provided battery charger. These outputs could be connected to a push-button on the user provided battery charger.

Please click here for more information on Powerpole® Connectors.

Specifications

Dimensions 1.5 x 6.5 x 3.75 inches
Max voltage (Powerpole®) 55V
Max current during charging (through Powerpole®) 40A continuous
Max voltage (IN-A and IN-B) 16V
Min voltage (IN-A and IN-B, minimum voltage required to detect asserted line) 3V (IN-A and IN-B detects assertion
regardless of polarity of voltage input)
Max voltage (OUT-A and OUT-B) 30V
Max current (OUT-A and OUT-B) 2A
Power supply 12V to 15V, 0.2A
PC 32 or 64-bit Windows OS on Intel® or AMD processors
(Virtual machines running Windows on these processors are OK)

Please click here for more information on Powerpole® Connectors.

Includes

  • CBA Charge Controller Unit
  • (2) 4 Position Input/Ouput Terminal Plugs
  • 2 pair Red and Black Powerpole® with 30A contacts
  • USB Cable (A-B)
  • Power Supply
  • Owner's Manual
CBA Charge Controller Diagram

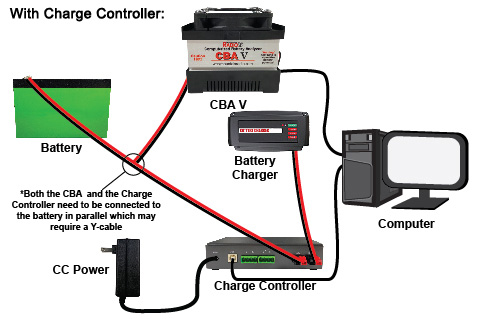

CBA Charge Controller with Amp Diagram
Powerpole® Cables
Powerpole® Misc
