Out of StockAdd to Wish List

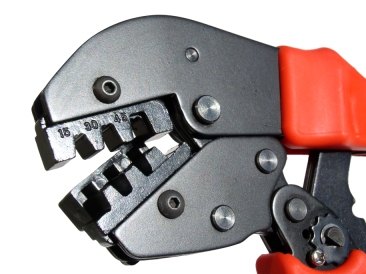

PWRcrimp - Crimp Tool for Powerpole® Connectors
#58568-1049
$39.95
PWRcrimp - Crimp Tool for Powerpole® Connectors.
- High performance Powerpole® crimp tool for a reasonable price.
- Aerospace quality crimps. More reliable, lower resistance and much easier than soldering.
- Crimps Powerpole® 15, 30 and 45 amp. Connectors
- Ratcheted mechanism assures proper crimps every time.
- Contact positioner holds contacts correctly while crimping.
- Long high leverage handle makes even 45 amp 10 gauge crimps easy.
Dimensions H,W,D
|
7.75" X 3" X 1.5"
|
Weight
|
20 ounces
|
Contact retention force, 15, 25 amp contacts
|
More than 25 pounds
|
Contact retention force, 45 amp contacts
|
More than 35 pounds
|
Please click here for more information on Powerpole® Connectors.
Connectors and Crimp tools |
---|
 | PWRlock - RIGrunner Retainer Kit 58512-1060 | $13.95 | Out of Stock Add to Wish List |
 | Powerpole® Connector 15A Pack - 12 Pair 58257-1093 | $15.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 15A Bulk Pack - 100 Pair 58257-1094 | $84.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 30A Pack - 12 Pair 58257-1095 | $15.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 30A Bulk Pack - 100 Pair 58257-1096 | $84.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 45A Pack - 12 Pair 58257-1099 | $20.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 45A Bulk Pack - 100 Pair 58257-1100 | $124.95 | Buy NowAdd to Wish List |
 | Powerpole® Retention Clips - 12 Pack 58257-1092 | $8.95 | Buy NowAdd to Wish List |

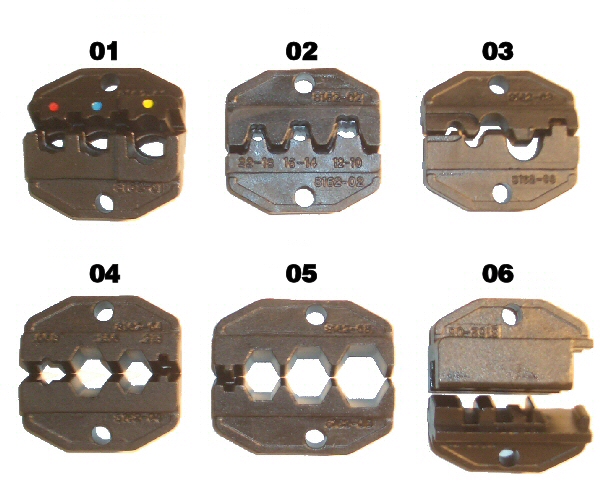

 | PWRcrimp Die Set - Insulated Terminals 58502-1050 | $9.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set - Non-insulated Open Barrel Terminals 58502-1051 | $9.95 | Out of Stock Add to Wish List |
 | PWRcrimp Die Set - Non-insulated Terminals 58502-1052 | $9.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set - RG58, RG59/62, BNC/TNC, Coax 58505-1053 | $13.95 | Out of Stock Add to Wish List |
 | PWRcrimp Die Set - RG59, RG6, F type, CATV 58505-1054 | $13.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set - RJ45 8P Modular 58507-1055 | $13.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set Package (6 most common) 58568-1056 | $54.95 | Out of Stock Add to Wish List |
 | PWRcrimp Die Set - Replacement (Powerpole® 15-30-45A) 58568-1057 | $13.95 | Out of Stock Add to Wish List |
 | PWRcrimp Die Set - 429/100, PL-259, N Type 58505-1712 | $9.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set - 429/118, PL259, N Type 58505-1713 | $9.95 | Buy NowAdd to Wish List |
Red/Black Cord |
---|
 | Zip Cord, Black/Red 10 AWG, 25 Feet 58555-1103 | $38.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 10 AWG, 50 Feet 58555-1104 | $70.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 10 AWG, 100 Feet 58555-1105 | $132.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 12 AWG, 25 Feet 58555-1106 | $24.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 12 AWG, 50 Feet 58555-1107 | $44.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 12 AWG, 100 Feet 58555-1108 | $83.95 | Buy NowAdd to Wish List |
Powerpole® Connector Features & Benefits
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
Powerpole® Connectors |
|
15A |
30A |
45A |
Amps (UL) Per Pole |
0 to 55 |
0 to 55 |
0 to 55 |
Volts (UL) Per Pole |
600 |
600 |
600 |
Amps Continuous |
15 |
30 |
45 |
Wire Gauge (AWG) |
20 - 16 |
16 - 12 |
14 - 10 |
Touchsafe Polarized Housing |
Yes Yes |
Yes Yes |
Yes Yes |
PDF Files Links |
Data Sheet
https://www.andersonpower.com/
|
Buy Powerpole® Pack |
View Options |
