PWRcheck

#58430-1286

$184.95

Click for Details
  • PWRcheck software
  • Micro USB cable
  • 2 pair Red and Black Powerpoles® with 30A contacts
  • Owner's Manual

Capabilities

Hardware

  • Handles 8 display modes including voltage, current flow in either direction, wattage and amp-hours
  • Measures 0V* to 60V (Less than 8V requires USB power to PWRcheck), 40A continuous load
  • Accurate to within +/- 10mV, +/- 10mA
  • Resolution - 10mV, 10mA
  • High side monitoring does not require breaking power supply ground or return path, ideal for vehicle use
  • Backlit graphics LCD displays data in digital, analog and bar graph formats
  • Monitor back up battery with programmable gas gauge
  • Non-volatile memory stores more than 100,000 data points (nearly 2 1/2 months worth of data @ 1 point per minute) without power
  • USB computer interface for configuration and data download
  • Programmable alarm conditions for overcurrent, over/under voltage, amp-hours
  • Uses Powerpole® connectors (see Accessories)
  • Dimensions: 0.875" H x 4.5" W x 3" D

* PWRcheck requires a minimum 50mA load to measure voltages below 4.5V.

Software

  • Easily program every aspect of PWRcheck operation such as data logging rate, display formats, alarm conditions
  • Displays current, voltage, wattage and amp-hours in real time
  • Integrated charting software automatically collects and displays data
  • Downloads stored data for later analysis
  • Exports to Excel

Computer System Requirements

Basic Requirements:

  • At least an 800 X 600 graphics card and display monitor
  • Windows XP, Vista®: 32 or 64 bit, Windows® 7: 32 or 64 bit
  • An available USB port

Please click here for more information on Powerpole® Connectors.

Electrical Specifications

  Minimum Typical Maximum Unit
Input Voltage
Without USB 8 - 60 V
With USB 0 - 60 V
Input Current
Without USB 0.120 - 40 A
With USB 0.025 - 40 A
Input Current Used by PWRcheck
Without USB 0.060 - 0.120 A
With USB 0 - 0 A

Includes

  • PWRcheck - integrated DC power analyzer, watt meter and electricity monitor
  • PWRcheck software
  • Micro USB cable
  • 2 pair Red and Black Powerpoles® with 30A contacts
  • Owner's Manual

Please click here for more information on Powerpole® Connectors.

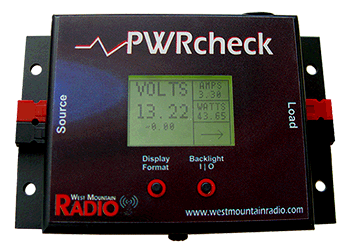

PWRcheck Screen Modes

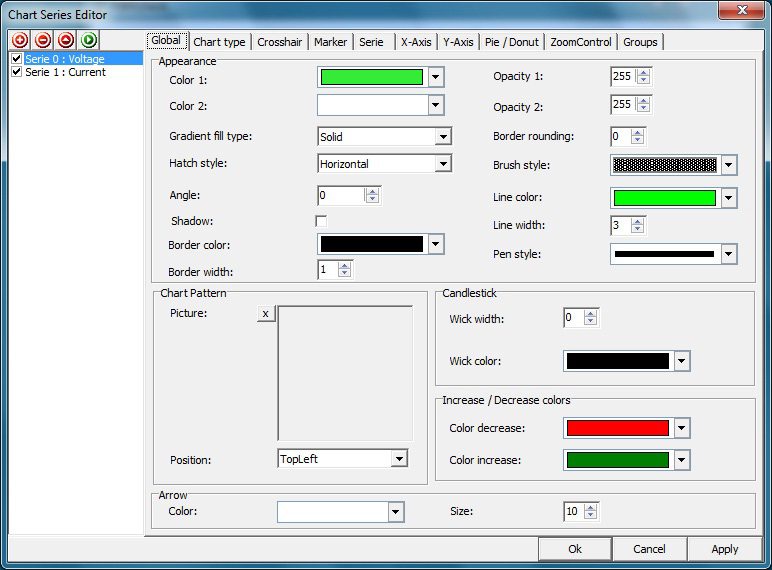

Chart Series Editor


Click here to enlarge the image.

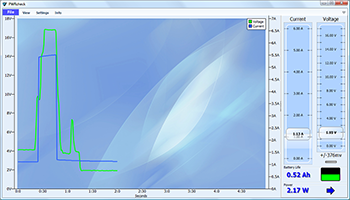

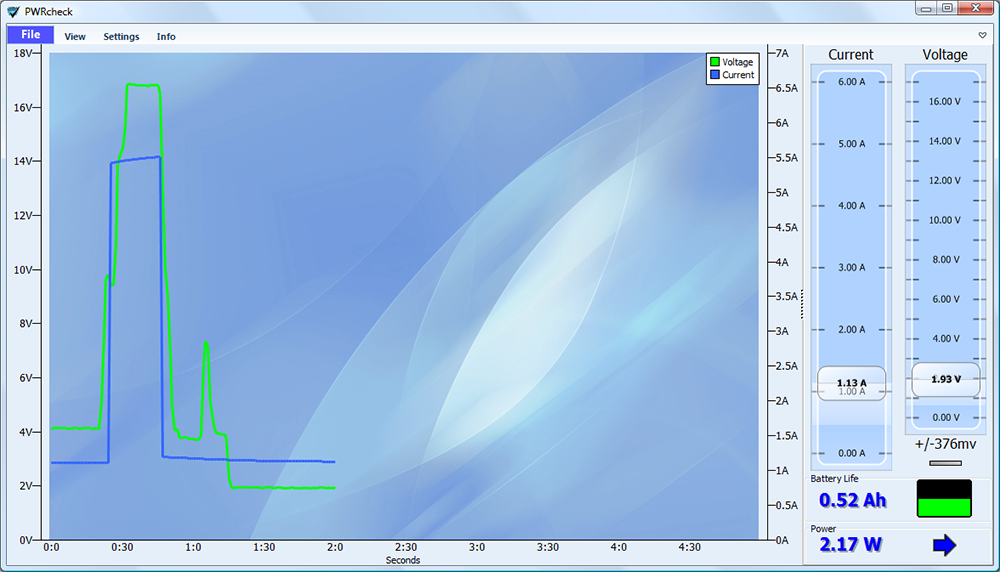

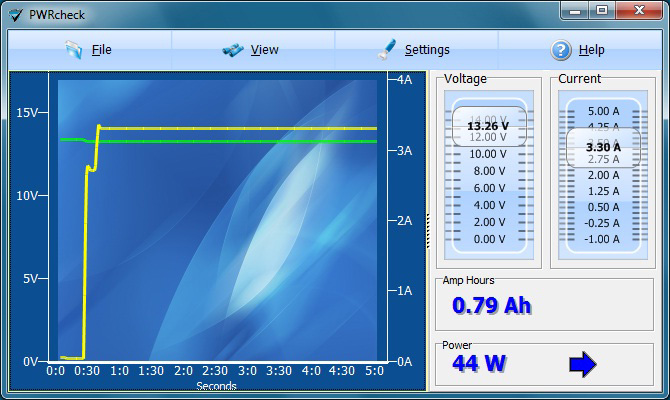

Main Screen

File Menu

Click here to enlarge the image.

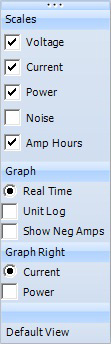

View Menu
