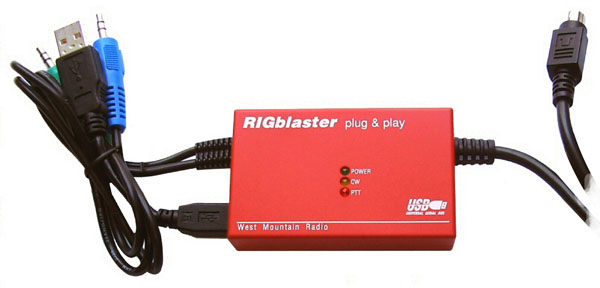

RIGblaster Nomic
Features of the RIGblaster Plug & Play
CLICK to see the RIGblaster Data Jack Plug&Play Radio Compatibility Chart
  • Works with specific radios that have compatible data/aux jacks with or without optional adaptor (See compatibility chart above)
  • Works with any computer that has sound and USB.
  • Built in USB to serial PTT, CW and CAT/CI-V control system. Mac 0S and Windows thru Visa 64.
  • Automatic operation only if your particular radio's data jack switches between that jack and the mic.
  • Built in rig control with Icom and Ten Tec or with TTL level CAT control (round CAT jack) Yaesu radios. Control cable and inexpensive option.
  • Rig control is possible along with sound card PTT control and CW keying on a SINGLE serial port using Hamscope or MixW software. Use of HRD with DM780, because they are separate programs, they must be configured correctly to work together as one program.
  • Transformer isolated receive audio from your radio.
  • Simplest RIGblaster to plug in provided your radio has a compatible data/aux jacks (See compatibility chart above)
  • Fully isolated CW keying output for direct keying of your rig's CW. This jack is for use with non-sound card software using serial DTR control. CW Keying cable optional.
  • Front panel LED indicators show PTT and CW keying control and USB connection.
  • Works with EVERY present or future ham radio sound card program!
  • Properly matched and RF suppressed audio for your radio.
  • Total ground loop isolation for transmit, receive and PTT and CW keying but not carrier detect.using isolation transformers, 2 optoisolators.
  • Far and away the easiest to use, most complete and up to date CD, included for free.
  • Supplied with everything that you need to get on the air with sound card software.
  • Effective RFI suppression to eliminate RF in the audio.
  • Positive and fully automatic PTT control supported almost 100 ham programs, no illegal or spurious signals due to built in sound card VOX operation.
  • Leaves your computer's sound functioning exactly as before unlike external sound chip interfaces.
  • Supplied in molded plastic case with silk screened labels.
  • Double sided 1/16" fiberglass plated through, solder masked and silk screened printed circuit board.
  • Connectors for USB connection, USB style A to B, extensions avaliable.
  • Limited one year parts and labor guarantee, you pay only one way shipping.
  • Step by step illustrated instruction manual on CD.
  • The best support, telephone and E-mail support 5 days a week 8 hours a day, for any question you have about our hardware or software setup.
  • USB powered.
Be sure to read our FAQs and Product Comparisons
to help you choose which model to buy.
HOW JUMPERS INSIDE RIGBLASTERS MAKE THEM UNIVERSALLY COMPATIBLE WITH ALMOST EVERY RADIO EVER MADE
