RIGrunner 4010S is no longer in production and has been replaced by
RIGrunner 4010S+.
RIGrunner 4010S+.

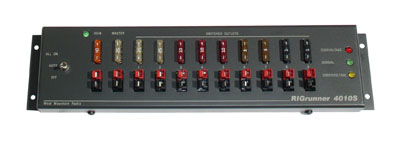

Features
RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a power source. The 4010S is the only power strip that has FET controlled automatic or manual on/off switching. Whatever radio is plugged in to the master jack automatically controls power switching of nine switched outlets. It uses the excellent Anderson Powerpole® connectors, standardizing all of your 12 VDC connections.
- 40 amp 12 VDC continuous duty with 10 outlets - one always on "Master" outlet and nine switched outlets
- Switched outlets controlled by 90 amp rated FET with temperature and over-current protection
- Three position control switch turns switched outlets on, off or enables automatic operation
- Precision voltage monitoring with visual/audible alarm for over and under voltage
Please click here for more information on Powerpole® Connectors.
Specifications
| Overall Dimensions (maximum, w/o cables) | 1.4" H x 11.75" W x 3.0" D |
| Weight | 15 1/4 oz. |
| Maximum total current | 40 amps |
| Maximum single individual outlet current | 40 amps (fuse protected) |
| ICAS current rating (fuse limited) | 37 amps |
| Precision comparator window points. | 11.5,15.0 Volts |
| Metering Accuracy | better than 2% @ 25 deg.C. |
| Audible alert SPL output | ~ 60dB SPL @ 1 meter |
| Maximum voltage | 19 volts |
| Reverse polarity protection (meter circuit) | Yes |
| 4010S Automatic switching threshold. | Most radios with appropriate master outlet fuse. |
Includes
- Spare Fuse Kit containing 1 ea 1, 5, 10, 15, 20, 30A
- (4) Rubber Feet
- (4) 3M Adhesive Pads
- Owner's Manual
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
| Powerpole® Connectors | |||
|---|---|---|---|
| 15A | 30A | 45A | |
| Amps (UL) Per Pole | 0 to 55 | 0 to 55 | 0 to 55 |
| Volts (UL) Per Pole | 600 | 600 | 600 |
| Amps Continuous | 15 | 30 | 45 |
| Wire Gauge (AWG) | 20 - 16 | 16 - 12 | 14 - 10 |
| Touchsafe Polarized Housing |
Yes Yes |
Yes Yes |
Yes Yes |
