Buy NowAdd to Wish List

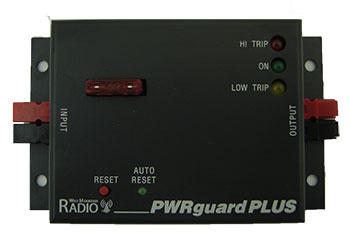

PWRguard Plus

#58402-1045

$114.95

Click for Details
  • PWRguard Unit
  • Owner's Manual
  • Automatic safety switch turns off if voltage exceeds 15 volts or drops below 11.0 volts, turns back on when voltage in safe operating range
  • Momentary voltage dips below 11.0 volts are ignored to prevent false tripping while transmitting
  • Programming of custom trip limits available, contact sales for details
  • Rated for 40 amps maximum while transmitting, 30 amps continuous duty

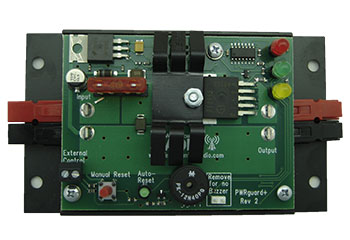

  • Soft turn-on / turn-off solid state switch protects radio and reduces in-rush current...no relay contact bounce!
  • Indicator LEDs and audible alarm notify user when safety switch turns power off. Buzzer may be disabled by user
  • External sense input can be wired to a switch or low voltage (3-5 volt) DC input. May be used for:
    • Keyswitch to prevent rig use during antenna repairs or when unattended.
    • Cut power based on a sensor input such as a water alarm.
    • Power up based on a sensor such as light detector or low current switch.
  • Uses Anderson Powerpole® connectors
  • Dimensions: 1.25" H x 4.5" W x 2.75" D

Please click here for more information on Powerpole® Connectors.

Specifications

Electronics: Maximum voltage: 35 VDC
Current: < 30 mA Normal Mode
  < 5 mA Sleep Mode
Solid State Switch:
Continuous Current: 30 A
Maximum Current: 40 A
Nominal ON resistance: 5 milliohms
Switching Ranges:
Hi Trip: 15.0 ± 0.1 VDC
Low Trip: 11.0 ± 0.1 VDC
Auto Re-Start: 13.0 ± 0.1 VDC
Switching Time Constants:
Hi-Trip: 10 milli-seconds
Low-Trip: 3.3 Seconds
Mode Select: 5.0 Seconds
Sleep Mode: 60 Minutes

Includes

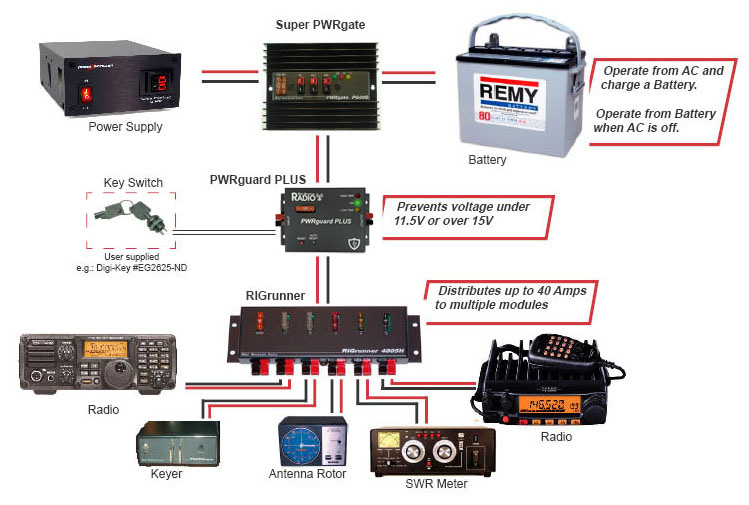

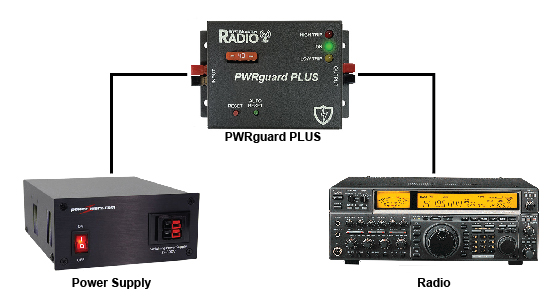

DC Power Diagram

Quality Declaration

This product has been tested to comply with Part 15 of the FCC rules for a Class B computer peripheral and digital device for use in the home and office. This testing is done to ensure the product does not generate RF interference.

Product designed, tested and used by ham radio operators onsite.

Power
Connectors and Crimp tools
PWRcrimp Crimp Tool
58568-1049
$39.95Buy NowAdd to Wish List
15A. Powerpole Connector Pack 12 Pair
58257-1093
$12.95Buy NowAdd to Wish List
 15A. Powerpole Connector Bulk Pack 100 Pair
58257-1094
$79.95Buy NowAdd to Wish List
 30A. Powerpole Connector Pack 12 Pair
58257-1095
$12.95Buy NowAdd to Wish List
 30A. Powerpole Connector Bulk Pack 100 Pair
58257-1096
$79.95Buy NowAdd to Wish List
 45A. Powerpole Connector Pack 12 Pair
58257-1099
$17.95Buy NowAdd to Wish List
 45A. Powerpole Connector Bulk Pack 100 Pair
58257-1100
$119.95Buy NowAdd to Wish List
Fuses
Fuse Assortment Low Value
58537-1085
$4.95Buy NowAdd to Wish List
Fuse Assortment High Value
58537-1086
$4.59Buy NowAdd to Wish List
Buss 10A ATC Circuit Breaker
58537-1087
$5.95Buy NowAdd to Wish List
Buss 15A ATC Circuit Breaker
58537-1088
$5.95Buy NowAdd to Wish List
Buss 20A ATC Circuit Breaker
58537-1089
$5.95Buy NowAdd to Wish List
Buss 25A ATC Circuit Breaker
58537-1090
$5.95Buy NowAdd to Wish List
Buss 30A ATC Circuit Breaker
58537-1091
$5.95Buy NowAdd to Wish List
PS/Battery/Supplies
Sealed Lead Acid 79 Amp Hour AGM Battery (20 Hr Rate)
58510-1058
$199.95Buy NowAdd to Wish List
Automatic Power Off Switch
58561-1109
$64.95Buy NowAdd to Wish List
Gel 73 Amp Hour Deep-Cycle Battery (20 Hr Rate)
58510-1059
$234.95Buy NowAdd to Wish List
Powerwerx 30 Amp Desktop Switching Power Supply with Powerpoles
58561-1258
$119.99Buy NowAdd to Wish List
Battery Box for Group 24 Size Battery
58510-1062
$19.95Buy NowAdd to Wish List
Battery - Post to Stud Conversion Kit
58515-1063
$9.95Buy NowAdd to Wish List
Battery Fuse & Terminal Kit
58516-1064
$9.95Buy NowAdd to Wish List
PWRnode 4 Pole Temporary Power Node
58519-1067
$14.95Buy NowAdd to Wish List
Red/Black Cord
Black/Red Zip Cord 10 Gauge, 25 Feet
58555-1103
$35.95Buy NowAdd to Wish List
Black/Red Zip Cord 10 Gauge, 50 Feet
58555-1104
$67.95Buy NowAdd to Wish List
Black/Red Zip Cord 10 Gauge, 100 Feet
58555-1105
$129.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 25 Feet
58555-1106
$24.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 50 Feet
58555-1107
$43.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 100 Feet
58555-1108
$83.95Buy NowAdd to Wish List

Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
  • Genderless Housings: Provide simplified assembly and minimize the number of components
  • Stackable Modular Housings: Available in four sizes to right size your connection need
  • Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
  • Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
  • Color Coded Housings: Help ensure that connectors are assembled and mated correctly
  • Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Powerpole® Connectors
  15A 30A 45A
Amps (UL) Per Pole 0 to 55 0 to 55 0 to 55
Volts (UL) Per Pole 600 600 600
Wire Gauge (AWG) 20 - 16 16 - 12 14 - 10
Touchsafe
Polarized Housing
Yes
Yes
Yes
Yes
Yes
Yes
PDF Files
Links
Data Sheet
http://www.andersonpower.com/
Buy Powerpole® Pack View Options
FAQ Anderson Powerpole® Connectors and General Installation Tips
