BackorderAdd to Wish List

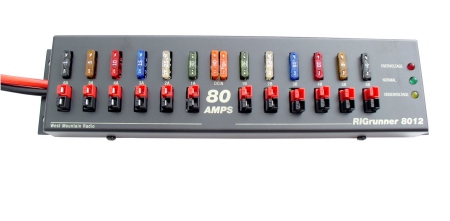

RIGrunner 8012
#58301-1029
$179.95
Click for Details
- 6' #8 AWG Power Supply Cable terminated in 1/4" ring terminals
- Spare Fuse Kit containing 1 each of 1, 5, 10, 20, 30, 40A
- (4) Rubber Feet
- (4) 3M Adhesive Pads
- Owner's Manual
Features
The RIGrunner 8012 is the latest addition to the RIGrunner line of DC Distribution Panels from West Mountain Radio. The 8012 provides distribution of up to 80 amps at 12VDC across two 40 amp busses.
- 80 amp 12VDC continuous duty with 6 outlets on each of two 40 amp busses
- Precision voltage monitoring with visual/audible alarm for over and under voltage
- Permanently attached 6' 8 AWG cable to ring terminals
Please click here for more information on Powerpole® Connectors.
Specifications
| Overall Dimensions (maximum, w/o cables) |
1.4" H x 11.75" W x 3.0" D |
| Weight |
15 1/4 oz. |
| Maximum total current |
80 amps |
| Maximum single individual outlet current |
40 amps (fuse protected) |
| ICAS current rating (fuse limited) |
74 amps |
| Precision comparator window points. |
11.5,15.0 Volts |
| Metering Accuracy |
better than 2% @ 25 deg.C. |
| Audible alert SPL output |
~ 60dB SPL @ 1 meter |
| Reverse polarity protection (meter circuit) |
Yes |
Construction
- Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
- Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
- Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
- Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
- Power connectors: exclusively Anderson Power Products® Powerpole®.
- Connectors are arranged according to the ARES/RACES standard (see our links).
- Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
- Stainless steel hardware with PEM™ threaded mounting standoffs.
Includes
- 6' #8 AWG Power Supply Cable terminated in 1/4" ring terminals
- Spare Fuse Kit containing 1 each of 1, 5, 10, 20, 30, 40A
- (4) Rubber Feet
- (4) 3M Adhesive Pads
- Owner's Manual
| Connectors and Crimp tools |
|---|
 | PWRcrimp - Crimp Tool for Powerpole® Connectors
58568-1049 | $39.95 | Buy NowAdd to Wish List |
 | PWRlock - RIGrunner Retainer Kit
58512-1060 | $13.95 | Out of Stock Add to Wish List |
 | Powerpole® Connector 15A Pack - 12 Pair
58257-1093 | $15.95 | Buy NowAdd to Wish List |
| Powerpole® Connector 15A Bulk Pack - 100 Pair
58257-1094 | $84.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 30A Pack - 12 Pair
58257-1095 | $15.95 | Buy NowAdd to Wish List |
| Powerpole® Connector 30A Bulk Pack - 100 Pair
58257-1096 | $84.95 | Buy NowAdd to Wish List |
 | Powerpole® Connector 45A Pack - 12 Pair
58257-1099 | $20.95 | Buy NowAdd to Wish List |
| Powerpole® Connector 45A Bulk Pack - 100 Pair
58257-1100 | $124.95 | Buy NowAdd to Wish List |
 | PWRcrimp Die Set Package (6 most common)
58568-1056 | $54.95 | Out of Stock Add to Wish List |
| Fuses |
|---|
 | Fuse Assortment Low Value
58537-1085 | $4.95 | Buy NowAdd to Wish List |
 | Fuse Assortment High Value
58537-1086 | $4.95 | Buy NowAdd to Wish List |
 | Buss 25A ATC Circuit Breaker
58537-1090 | $5.95 | Buy NowAdd to Wish List |
 | Buss 30A ATC Circuit Breaker
58537-1091 | $5.95 | Buy NowAdd to Wish List |
| Red/Black Cord |
|---|
 | Zip Cord, Black/Red 10 AWG, 25 Feet
58555-1103 | $38.95 | Buy NowAdd to Wish List |
| Zip Cord, Black/Red 10 AWG, 50 Feet
58555-1104 | $70.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 10 AWG, 100 Feet
58555-1105 | $132.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 12 AWG, 25 Feet
58555-1106 | $24.95 | Buy NowAdd to Wish List |
| Zip Cord, Black/Red 12 AWG, 50 Feet
58555-1107 | $44.95 | Buy NowAdd to Wish List |
 | Zip Cord, Black/Red 12 AWG, 100 Feet
58555-1108 | $83.95 | Buy NowAdd to Wish List |
| Powerpole® to Alligator Clips |
|---|
 | Powerpole® to Large Alligator Clips
58257-1071 | $19.95 | Buy NowAdd to Wish List |
 | Powerpole® to Small Alligator Clips
58257-1072 | $14.95 | Buy NowAdd to Wish List |
| Powerpole® to Cigarette Adapter |
|---|
 | Powerpole® to Cigarette Lighter Plug
58257-1073 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® to Cigarette Lighter Receptacle
58257-1074 | $14.95 | Buy NowAdd to Wish List |
| Powerpole® to Con Power Plug |
|---|
 | Powerpole® to 5.5 x 2.5mm DC Jack
58257-1116 | $9.95 | Buy NowAdd to Wish List |

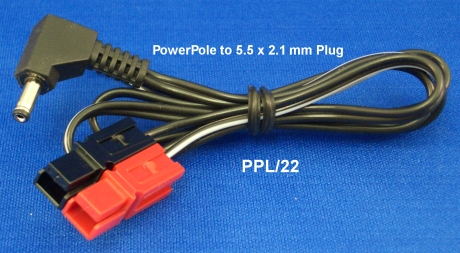

 | Powerpole® to 5.5 x 2.1mm DC Jack
58257-1117 | $9.95 | Buy NowAdd to Wish List |
 | Powerpole® to 5.5 x 2.1mm DC Plug
58257-1069 | $9.95 | Buy NowAdd to Wish List |
 | Powerpole® to 5.5 x 2.5mm DC Plug
58257-1070 | $9.95 | Buy NowAdd to Wish List |
| Powerpole® to Power Supply/Battery |
|---|
 | Powerpole® to Batt Ring Term with 30A Fuse Cable, 6ft
58257-1068 | $19.95 | Buy NowAdd to Wish List |
 | Powerpole® to Batt Ring Term with 50A Fuse Cable, 6ft
58257-1533 | $24.95 | Buy NowAdd to Wish List |
 | Powerpole® to Blade Gel Cell Connectors, 12in
58257-1076 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® Y Cable, 6in
58257-1077 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® to 1/4" Ring Term Cable, 3ft
58531-1079 | $12.95 | Buy NowAdd to Wish List |
 | Powerpole® to 1/4" Ring Term Cable, 6ft
58531-1080 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® to 1/4" Ring Term Cable, 10ft
58531-1081 | $19.95 | Buy NowAdd to Wish List |
 | Powerpole® Extension Cable, 3ft
58531-1082 | $9.95 | Buy NowAdd to Wish List |
 | Powerpole® Extension Cable, 6ft
58531-1083 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® Extension Cable, 10ft
58531-1084 | $19.95 | Buy NowAdd to Wish List |
| Powerpole® to Radio/RB |
|---|
 | Powerpole® to 4 pin HF Radio, 6ft
58257-1111 | $24.95 | Buy NowAdd to Wish List |
 | Powerpole® to 3 pin Radio (IC-703), 3ft
58257-1112 | $19.95 | Buy NowAdd to Wish List |
 | Powerpole® to 1.7mm DC Radio (FT-817, some HT), 6ft
58257-1113 | $9.95 | Buy NowAdd to Wish List |
 | Powerpole® to an FT-817 & LDG Z-11 Tuner
58257-1114 | $19.95 | Buy NowAdd to Wish List |
 | Powerpole® to 6 pin HF Radio, 6ft
58257-1075 | $14.95 | Buy NowAdd to Wish List |
 | Powerpole® to "T-style" FM Mobile Radio, 6ft
58257-1078 | $14.95 | Buy NowAdd to Wish List |
| Custom |
|---|
| | Custom Power Cable
58800-1339 | | More Info |
Powerpole® Connector Features & Benefits
- Genderless Housings: Provide simplified assembly and minimize the number of components
- Stackable Modular Housings: Available in four sizes to right size your connection need
- Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
- Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
- Color Coded Housings: Help ensure that connectors are assembled and mated correctly
- Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.
Anderson Powerpole® Connectors and General Installation Tips
| Powerpole® Connectors |
| |
15A |
30A |
45A |
| Amps (UL) Per Pole |
0 to 55 |
0 to 55 |
0 to 55 |
| Volts (UL) Per Pole |
600 |
600 |
600 |
| Amps Continuous |
15 |
30 |
45 |
| Wire Gauge (AWG) |
20 - 16 |
16 - 12 |
14 - 10 |
Touchsafe
Polarized Housing |
Yes
Yes |
Yes
Yes |
Yes
Yes |
