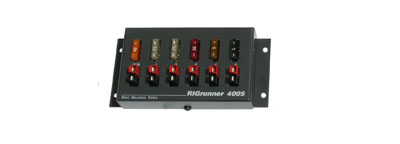

RIGrunner 4005

  • (4) Rubber Feet
  • (4) 3M Adhesive Pads
  • Owner's Manual

#58312-1039

$69.95

Buy Now

RIGrunner 4005 COMPLETE

  • 4005 RIGrunner (#58312-1039)
  • 6 pair Pack of 30A. Powerpole connectors
  • 6' #10 AWG Power Supply Cable terminated in 1/4" ring terminals

#58312-1038

$84.95

Capabilities

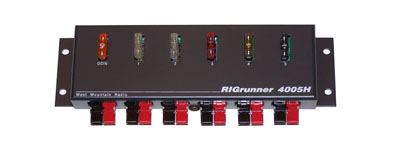

RIGrunner is the most convenient and safest way to connect all of your 12 volt equipment to a power source. It uses the excellent Anderson Powerpole connectors, standardizing all of your 12 VDC connections. This RIGrunner can deliver up to 40 amps total through 5 outlets and is available with top mounted Powerpole connectors.

  • 40 amp 12 VDC continuous duty with 5 outlets

Construction

  • Built in USA to IPC-610 commercial manufacturing standards by an ISO9002 facility.
  • Printed circuit board .062 FR4 material, extra heavy 3oz. copper, with greater than 1" wide high current traces.
  • Double sided, plated through holes, solder mask over bare copper, silk screened commercial grade printed circuit board.
  • Enclosure: .062 aluminum, with attractive and extremely durable powder coat painting and clear silk screen labels.
  • Power connectors: exclusively Anderson Power Products Powerpoles®.
  • Connectors are arranged according to the ARES/RACES standard (see our links).
  • Fuses installed are standard ATC/ATO automotive fuses available in 10 values from 1 to 40 Amps.
  • Stainless steel hardware with PEM™ threaded mounting standoffs.

Powerpole® is a registered trademark of Anderson Power Products.

Specifications

Overall Dimensions (maximum, w/o cables) 1.4" H x 11.75" (4010S, 8012 & 4012), 9" (4008), 6" (4005) W x 3.0" D
Weight 15 1/4 (4010S, 8012 & 4012), 11 1/4 (4008), 6 3/4 (4005) oz.
Maximum total current 40 amps (4010S - 4012 - 4008 - 4005)
80 amps (8012)
Maximum single individual outlet current 40 amps (fuse protected, all models)
ICAS current rating (fuse limited) 37 amps (4010S - 4012 - 4008 - 4005)
74 amps (8012)
Precision comparator window points. 11.5,15.0 Volts (8012, 4010S, 4012, 4008 only)
Metering Accuracy better than 2% @ 25 deg.C. (8012, 4010S, 4012, 4008 only)
Audible alert SPL output ~ 60dB SPL @ 1 meter (8012, 4010S, 4012, 4008 only)
Maximum voltage (meter circuit) 32 volts (8012, 4010S, 4012, 4008 only)
Reverse polarity protection (meter circuit) Yes (8012, 4010S, 4012, 4008 only)
4010S Automatic switching threshold. Most radios with appropriate master outlet fuse.
