BackorderAdd to Wish List

Epic PWRgate

#58404-1673

$189.95

Click for Details
  • Epic PWRgate Unit
  • USB-micro Cable
  • (4) Retention Clips
  • Owner's Manual
  • Reference Card
View Details. The estimated return to stock date is May 1, 2022.

Buy NowAdd to Wish List

Epic-H PWRgate

#58404-1795

$189.95

Click for Details
  • Epic-H PWRgate Unit
  • USB-micro Cable
  • (4) Retention Clips
  • Owner's Manual
  • Reference Card
The Epic PWRgate is West Mountain Radio's 3rd generation power gate product. It uses advanced technology to achieve a very low power loss and has maximum flexibility to charge modern batteries. Both models are the same with exception of the Powerpole® orientation.
Recommended Batteries
Order a Custom Battery Box
Subscribe to Notifications for Epic PWRgate Firmware Updates

  • Epic PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Low loss PWRgate provides forward voltage drop of only 0.05 volts.
  • USB port access to monitor system or to change charge parameters.
  • Program for specific battery types.
  • Supports smart charging of either Lead Acid or Li-Ion battery charging up to 10A.
  • Supports power supply or direct solar panel (MPPT) battery charging for all battery chemistries. Solar panel VOC must be <= 30V.
  • Maximum Power Point Transfer (MPPT) charging provides the maximum power out of a solar panel.
  • Can be programmed for vehicle use to suspend charging when the alternator is off.
  • Complete LED status indicators.
  • Battery charge suspend button to eliminate current draw or charger noise for 30 minutes. Possible RFI may be emitted from MPPT charge controller.

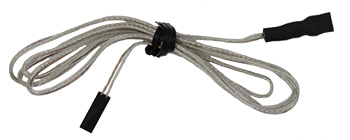

  • Optional temperature probe to control charging based on battery temperature.
  • Solid, durable construction in an aluminum case. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole® connectors.

Please click here for more information on Powerpole® Connectors.

Specifications

Maximum Voltage:PS 16V / Solar 30V
Maximum Current:40 Amperes
Maximum Charge Current:10A
Voltage Drop:0.05VDC
Connectors:Anderson Powerpole®, 45A
Size:4.5 x 3.375 x 1.25 in
Weight:0.35 lbs
Mounting Holes:Four - 0.175 d, #8 hardware
Charging Circuit:
Jumper Lead Acid AGM LiFePO4
Charge Voltage 13.85V 14.4V 14.5V
Charge Current 1, 5 or 10 amps 1, 5, 10 amps 1, 5, 10 amps
Stop Charge Current 0.25A 0.25A 0.5A
Trickle Charge 0.15A 0.15A 0A
Recharge Voltage 12.1V 12.1V 12.6V
Max Charge Time 25 hrs 25 hrs 25 hrs
Retry Time 4 hrs 4 hrs 4 hrs
Chemistry Lead Acid AGM LiFePO4
Min PS Volts 13.9V 14.45V 14.45V
Lowest Temp (F) 0 0 35
Highest Temp (F) 120 120 110
Use Temp for Charge Yes Yes No

*Note: The above parameters may also be changed via the USB interface.

Includes

  • Epic PWRgate Unit
  • USB-micro Cable
  • (4) Retention Clips
  • Owner's Manual
  • Reference Card

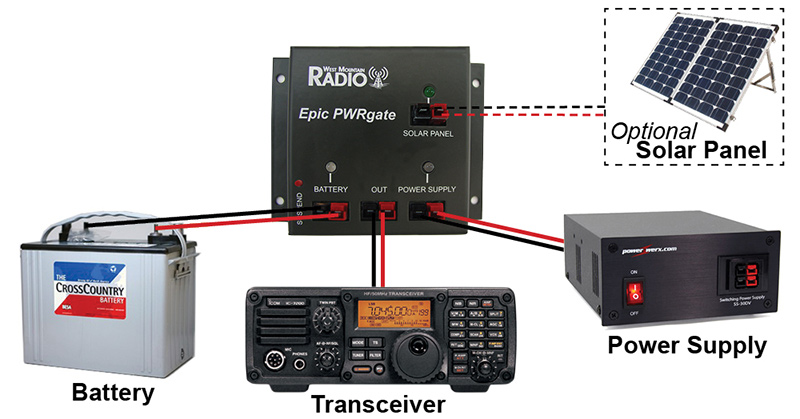

Epic PWRgate Diagram

Quality Declaration

Product designed, tested and used by ham radio operators onsite.

Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
  • Genderless Housings: Provide simplified assembly and minimize the number of components
  • Stackable Modular Housings: Available in four sizes to right size your connection need
  • Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
  • Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
  • Color Coded Housings: Help ensure that connectors are assembled and mated correctly
  • Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.

Anderson Powerpole® Connectors and General Installation Tips

Powerpole® Connectors
  15A 30A 45A
Amps (UL) Per Pole 0 to 55 0 to 55 0 to 55
Volts (UL) Per Pole 600 600 600
Amps Continuous 15 30 45
Wire Gauge (AWG) 20 - 16 16 - 12 14 - 10
Touchsafe
Polarized Housing
Yes
Yes
Yes
Yes
Yes
Yes
