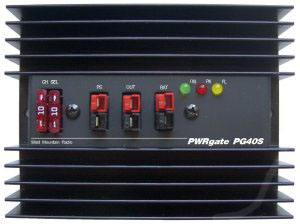

Super PWRgate PG40S

#58403-1046

$139.95

Click for Details
  • PG40S Unit
  • (4) Rubber Feet
  • Owner's Manual
  • A Super PWRgate is a 12 volt backup power system rated at 40 amperes continuous from either a Power Supply or a Battery.
  • The Super PWRgate has a built-in four-stage battery charger with selectable current rates of 1, 4, 7 or 10 amperes.
  • Connected equipment will instantly switch to battery during a power blackout or power supply failure.
  • Uses two 80 ampere Schottky diodes as an OR-Gate to isolate the battery and power supply from each other.
  • Low loss PWRgate provides forward voltage drop of less than 0.3 volts at 20 A and 0.37 volts at 40 A.
  • Optimized for use with GELLED & AGM type batteries, but will keep flooded lead acid and marine type batteries near full charge as well.
  • Solid, durable construction in an aluminum case with heat sink. Includes mounting holes for convenient and secure use in mobile units.
  • Uses Anderson Powerpole® connectors
  • Dimensions: 1.65" H x 5.25" W x 3.9" D

Please click here for more information on Powerpole® Connectors.

Specifications

Maximum Voltage:18 Volts DC
Maximum Current:40 Amperes
Circuit:Diode OR-Gate
Diodes:Two Schottky 80 Ampere, 20 Volt
Voltage Drop:0.25 Vdc at 1 Ampere
0.37 Vdc at 40 Ampere
Charging Circuit:Smart, linear charger
Fuse switched for 1,4,7 or 10 Amperes (±5%) maximum
Peak voltage limit: 13.8 (Gelled), 14.2 (AGM),(±2%)
Peak voltage limit set via internal jumper to GELLED or AGM
Peak voltage terminate point: 0.1 Maximum current
Float Voltage: 13.5 volts (±2%)
LEDs:Green - Indicates charger is "ON"
Red - Indicates peak "PK" charge voltage
Yellow - Indicates Float "FL" voltage
Connectors:Anderson Powerpoles®, 40A
Dimensions:1.65" H x 5.25" W x 3.9" D
Weight:0.9 lbs, 0.4 kg (aluminum enclosure with heat sink)
Mounting Holes:Two, 0.175 in. d, at a distance 4.875 in., for #8 hardware

Please click here for more information on Powerpole® Connectors.

Includes

Power
Powerpole Cables
Connectors and Crimp tools
PWRcrimp Crimp Tool
58568-1049
$39.95Buy NowAdd to Wish List
15A. Powerpole Connector Pack 12 Pair
58257-1093
$12.95Buy NowAdd to Wish List
 15A. Powerpole Connector Bulk Pack 100 Pair
58257-1094
$79.95Buy NowAdd to Wish List
 30A. Powerpole Connector Pack 12 Pair
58257-1095
$12.95Buy NowAdd to Wish List
 30A. Powerpole Connector Bulk Pack 100 Pair
58257-1096
$79.95Buy NowAdd to Wish List
 45A. Powerpole Connector Pack 12 Pair
58257-1099
$17.95Buy NowAdd to Wish List
 45A. Powerpole Connector Bulk Pack 100 Pair
58257-1100
$119.95Buy NowAdd to Wish List
Fuses
Fuse Assortment Low Value
58537-1085
$4.95Buy NowAdd to Wish List
Fuse Assortment High Value
58537-1086
$4.59Buy NowAdd to Wish List
Buss 10A ATC Circuit Breaker
58537-1087
$5.95Buy NowAdd to Wish List
Buss 15A ATC Circuit Breaker
58537-1088
$5.95Buy NowAdd to Wish List
Buss 20A ATC Circuit Breaker
58537-1089
$5.95Buy NowAdd to Wish List
Buss 25A ATC Circuit Breaker
58537-1090
$5.95Buy NowAdd to Wish List
Buss 30A ATC Circuit Breaker
58537-1091
$5.95Buy NowAdd to Wish List
PS/Battery/Supplies
Gel 73 Amp Hour Deep-Cycle Battery (20 Hr Rate)
58510-1059
$234.95Buy NowAdd to Wish List
Sealed Lead Acid 79 Amp Hour AGM Battery (20 Hr Rate)
58510-1058
$199.95Buy NowAdd to Wish List
Automatic Power Off Switch
58561-1109
$64.95Buy NowAdd to Wish List
Powerwerx 30 Amp Desktop Switching Power Supply with Powerpoles
58561-1258
$119.99Buy NowAdd to Wish List
Battery Box for Group 24 Size Battery
58510-1062
$19.95Buy NowAdd to Wish List
Battery - Post to Stud Conversion Kit
58515-1063
$9.95Buy NowAdd to Wish List
Battery Fuse & Terminal Kit
58516-1064
$9.95Buy NowAdd to Wish List
PWRnode 4 Pole Temporary Power Node
58519-1067
$14.95Buy NowAdd to Wish List
Red/Black Cord
Black/Red Zip Cord 10 Gauge, 25 Feet
58555-1103
$35.95Buy NowAdd to Wish List
Black/Red Zip Cord 10 Gauge, 50 Feet
58555-1104
$67.95Buy NowAdd to Wish List
Black/Red Zip Cord 10 Gauge, 100 Feet
58555-1105
$129.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 25 Feet
58555-1106
$24.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 50 Feet
58555-1107
$43.95Buy NowAdd to Wish List
Black/Red Zip Cord 12 Gauge, 100 Feet
58555-1108
$83.95Buy NowAdd to Wish List

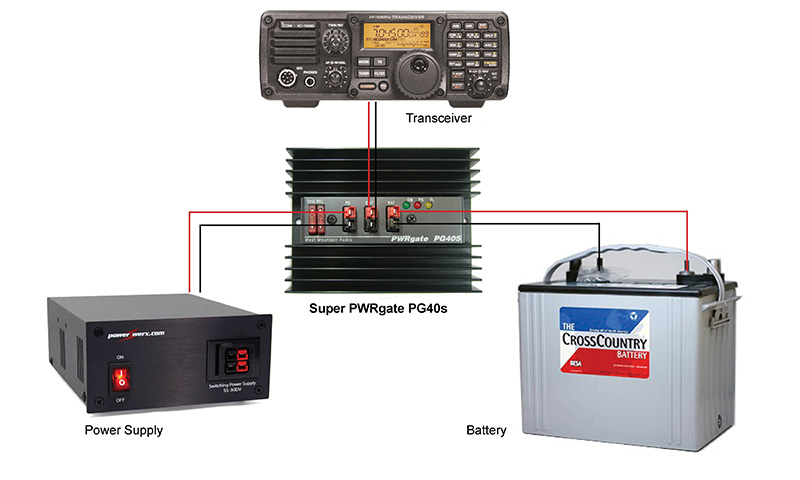

Super Power Gate Diagram
