RIGrunner 10010i Rackmount

#58321-1799

$549.95

Click for Details
  • RIGrunner 10010i
  • (11) Retention Clips
  • RJ45 Ethernet Cable
  • Owner's Manual
View Details. The estimated release date is November 20, 2020.

Features

The RIGrunner 10010i enables amateur radio, emergency communications systems and repeater site operators to monitor and control their DC power distribution systems from any internet-ready mobile device or PC.

  • Provides internet based monitoring and control of 12VDC power distribution
  • Delivers up to 100 amps total through 10 outlets while transmitting, 100 amps continuous duty
  • Each outlet features independent on/off control and user configurable current trip point, 100mA to 40A
  • Integrated web server for monitoring and control
  • Integrated SNMP agent for monitoring and control
  • Alarm can be triggered when unit boots up, voltage is too high or low, or fuse is blown
  • Alarm can be triggered when an output turns on, turns off and periodically
  • Alarms can be emailed
  • Alarms can be logged to an SD card and/or cause an SNMP trap
  • Outputs can be configured to turn off or on based on user determined schedule
  • Supports SNMPv1, SNMPv2 and SNMPv3 with AES encryption
  • Network Watchdog Timer (Net WDT) can reboot unit if a specific HTTP request isn't periodically received
  • Front mounted LCD display and indicator LEDs for local monitoring of status, input voltage and current draw from each outlet
  • Rear mounted Anderson Powerpole® connectors with retention clips
  • Metal encasing with a long front panel that allows it to be mounted to a rack

Click here to see the RIGrunner 4005i, RIGrunner 4005i with WiFi, or RIGrunner 4005i - 24V Positive.

Please click here for more information on Powerpole® Connectors.

Specifications

Overall Dimensions (maximum, w/o cables) 1.75" H x 19" W x 8.5" D
Weight 51.2 oz.
Input Voltage Range min. 8.0V / max. 15.5V
Current:
Max. Total Continuous 100A
Max. Port Continuous 35A @ 25° C
Max Port @ 1 minute 40A @ 25° C
Operating w/Backlight 160mA
Operating no Backlight 150mA

Includes

  • RIGrunner 10010i
  • (11) Retention Clips
  • RJ45 Ethernet Cable
  • Owner's Manual

The integrated web server and SNMP agent enables internet based monitoring and control of your DC power distribution system. It includes the following capabilities:

  • Input voltage monitor
  • Current draw monitoring through each outlet
  • Individual outlet on/off control with trip indication
  • Configuration of current limits for each outlet, 1 to 40 amps
  • Generation of alarm email in case of current limit trip
  • Generation of alarm email in case of over voltage or under voltage
  • Alarms can be emailed
  • Alarms can logged to an SD card and/or cause an SNMP trap
  • Outputs can be configured to turn off or on based on user determined schedule
  • Network Watchdog Timer (Net WDT) can reboot unit if a specific HTTP request isn't periodically received

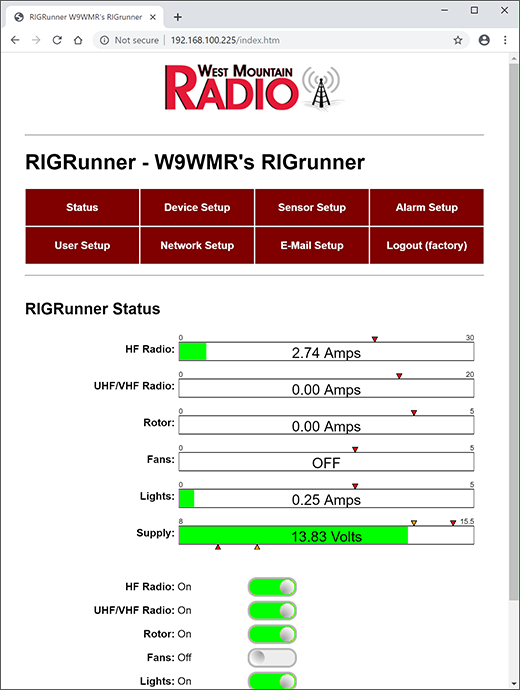

Software Screenshot

Quality Declaration

This product has been tested to comply with Part 15 of the FCC rules for a Class B computer peripheral and digital device for use in the home and office. This testing is done to ensure the product does not generate RF interference.

Product designed, tested and used by ham radio operators onsite.

Powerpole® is a registered trademark of Anderson Power Products.
Powerpole® Connector Features & Benefits
  • Genderless Housings: Provide simplified assembly and minimize the number of components
  • Stackable Modular Housings: Available in four sizes to right size your connection need
  • Connection Versatility: Contacts for wire, PCB, or busbar all fit into the same housings
  • Low Resistance Connection: Silver or tin plated contacts inside housings that strongly force the contacts together
  • Color Coded Housings: Help ensure that connectors are assembled and mated correctly
  • Self Securing Design: Stainless steel springs create a robust force between the contacts that holds the connector in the mated condition, but allows it to be quickly disconnected.

Anderson Powerpole® Connectors and General Installation Tips

Powerpole® Connectors
  15A 30A 45A
Amps (UL) Per Pole 0 to 55 0 to 55 0 to 55
Volts (UL) Per Pole 600 600 600
Amps Continuous 15 30 45
Wire Gauge (AWG) 20 - 16 16 - 12 14 - 10
Touchsafe
Polarized Housing
Yes
Yes
Yes
Yes
Yes
Yes
